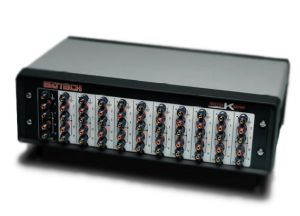

914 – MicrosKanner

Feature

Micro K 채널확장스캐너 • 10채널 확장 스캐너 / 최대 90채널 확장 가능 (micro K) • 측정 : SPRT, PRT, T/C, Thermistor • 자동인식 기능

Input channels	10ch/expandable to 90 channels with micro K
Channels	SPRTs, PRTs, thermistor and thermocouples
Range	-200 to 1800C
Units	^oC, ^oF, K, Ω, mV, ratio
Interfaces	RS232 (9600baud)
Operating temp/RH	0-50^oC / 32-120^oF, 10-90% humidity
Full specification temp/RH	15-30^oC / 50-85^oF, 10-90% humidity
Power	10W maximum / 1.2(RMS)maximum
Size	520mm x 166mm x 300mm 20.5’’ x 6.6’’ x 11.9’’ (WxDxH)
Weight	12.6kg
Measurement time	2 seconds per channel
Keep-warm current	SPRTs/PRTs	0-10 mA±0.4% of nalue, ±7μ
		A, resolution 2.5μA
