ADTS 405 / ADTS 405F

262329369397

Feature
• 높은 정확도, RVSM 준수 • 항공 정비 및 랙 장착 버전 • 민간 및 군용 사양 • 통합 또는 원격 압력/진공 공급 • 항공기 유형에 적합하게 완전 프로그래밍 가능 • 항공기 기기 보호 ADTS 405는 air data test systems series 중에 가장 최근의 기술이 바탕이된 고정밀 항공기 계측장비입니다. 견고하고 컴팩트한 디자인은 GE-Druck사의 지속적인 연구 개발의 결과인 동시에 고객의 의견과 경험을 바탕으로수많은 자동 압력 controller들의 제조 과정을 거쳐 진화한 것입니다. 결과적으로 항공기의 data,test, simulation 기능을 간편하게 운영할 수 있도록 최적화되어 설계되었습니다. ADTS 405는 pitot의 statics의 적용되는 항공기의 정밀한 고도/속도의 확인 및 교정 업무, RVSM (Reduced Vertical Separation Minima)등을 측정하도록 최적화 되어있습니다.
  • SPEC
  • DATA SHEET
  • 장착형 ADTS 405
    ADTS 405는 50cm의 랙 모듈 하우징 타입으로써 display와 key-pad가 전면에 장착되었고 이 모델은 압력/진공펌프가 별도로 외장형으로 분리되있습니다.
    adts-405-1

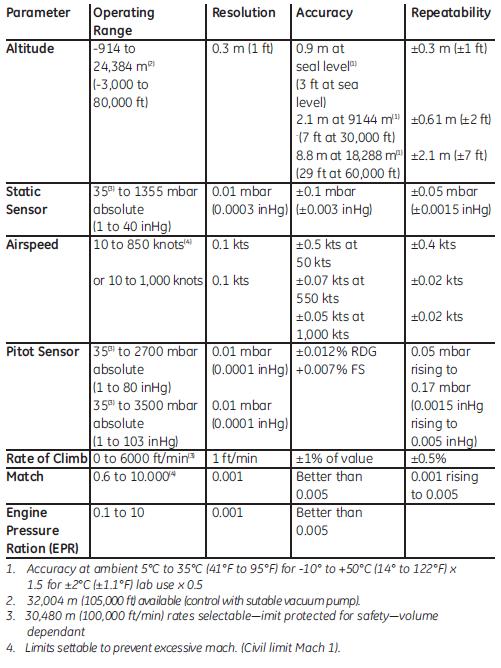

    Scaling Factors

    Altitude

    ft metres

    Airspeed

    knots, km/hr, mph

    Others

    mbar, inHg, inH20 (4°C, 20°C, 60°F), mm Hg, kPa, hPa, psi.

    Airspeed

    CAS (calibrated)

    TAS (true—ability to enter temperature)

    Rate Control/Indication

    RoC

    Rate of Climb

    Rt Ps Rate of Static

    Rt Pt

    Rate of Pitot

    Rt Qc Rate of Pt-Ps

    Rt CAS

    Rate of calibrated airspeed

    Rt EPR

    Rate of engine pressure ratio

    Overpressure

    Negligible calibration change with up to 1.25 x FS overload applied.

    Calibration Stability

    Better than 50 ppm per year

    Display

    LCD backlit, supertwist/wide angle viewing. 123 mm x 42 mm

    (4.8 in x  1.6 in) window with 4 lines of 20 characters 8 mm (0.3 in) high.  Optional hand terminal display window 73 mm x 24 mm (2.87 in x  0.95 in)

    Response

    Two readings per second display value update.
    Five readings per second interface and control system updates.

    Power Supplies

    90 to 260 VAC at 47 to 440 Hz, 100 VA normal, 400 VA maximum

    Self Test

    Integral test routines and reporting for both  electrical and  pneumatic

    systems.

    Digital Interfaces

    Parallel printer interface available as standard.

    IEEE488.2 optional  earlier versions also available

    Temperature Range

    Calibrated

    5°C to 35°C (41°F to 95°F)

    Operating

    -10°C to 50°C (14°F to 122°F)

    Storage

    -20°C to 70°C (-4°F to 158°F)

    Humidity

    0 to 90% condensing. “Tropicalised” pcb’s to MIL-T-28800

    Shock/Vibration

    MIL-T-28800 Class 2.

    Safety Performance

    EN50081-1 for EMC emissions
    EN50082-1 for EMC immunity
    EN61010 for electrical and mechanical safety

    Physical

    13 kg (29 lb) nominal.
    Case dimensions: 485 mm x 270 mm x 305 mm (19 in x 10.5 in x 12  in)

    Pneumatic Connections

    Front panel mounted fittings with blanking caps

    Static: AN-6 37° flare
    Pitot: AN-4 37° flare

    Pneumatic Supplies

    Fitted with replaceable filters Vacuum (AN6) and pressure (AN4)

    supply fittings on rear panel with 2.5 m (8 ft) long mating hoses.

    For normal use, dry air with source pressure at a maximum 25%

    above specified pressure range. Compatibility with other dry,

    non-  corrosive gases can be provided. Please refer to GE.

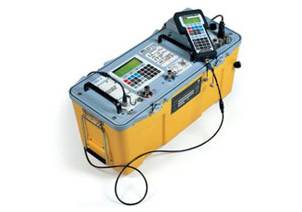

    이동형 ADTS 405F

    ADTS 405F는 압력/진공펌프가 내장되어 있으며 디자인은 군용(육군/해군)과 민간형으로 구분된다.
    이 모델은 이동형으써 한사람이 끌고 다닐 수 있도록 설계되어 있습니다.

    Power Supply

    90 to 260 VAC at 47 to 440 Hz, 500 VA. 28 VDC option available.

    Digital Interfaces

    Standard parallel printer connection accessible via front panel  protection cover. IEEE488 optional

    Sealing

    Weatherproof in operating mode (lid removed).

    Physical

    35 kg (77 lb)
    762 mm x 320 mm x 480 mm (30 in x 13 in x 19 in) nominal. Wheels  supplied for ease of transport.

    Pressure/Vacuum Unit

    Integral pneumatic supplies (PV 103F). Auxiliary connections for external supplies to boost or drive other equipment. Supply for vacuum hold down static adaptors also provided.

    카트형 ADTS 405C

    ADTS 405C는 새시 내부 압력/진공펌프가 내장되어 있디며,
    Line Switching Unit (LSU)가 장착되어 있어 여러개의 Ps와 Pt outlet을 사용이 가능합니다.

    Power Supply

    As ADTS 405F with 10 m (33 ft) AC power lead.

    Sealing

    Weatherproof with all doors closed.

    Physical

    Weight

    250 kg (550 lb)

    Size (h x l x w)

    1150 mm x 1350 mm x 700 mm

    (45 in x 53 in x 27 in)  nominal.

    Towing

    Maximum safe speed 15 km/h (10 mph). Foam filled wheels 381mm(15 in) diameter and a steering wheel 254 mm (10 in) diameter,  nominal.

    Option

    ADTS405Remote Control

    Terminal

    A handheld remote control facility for the rack mount  ADTS 405

    (standard with ADTS 405F/ADTS 405C). Complete with 2 m (6 ft) long

    cable.

    Lid Mounted Switching

    Manifold

    Two five-way manifolds for multiple output Ps and Pt ports.

    Each line  has an individual manual shut-off valve.

    28 VDC Operation

    In addition to AC supply, a second power connector enables

    28 VDC  input for rack, flightline or cart versions.

    ADTS 405 Bench Case

    A case to enclose the ADTS 405 482.6 mm (19 in) rack unit for  benchtop use.

    IEEE488 Interface

    (SCPI version)

    Current ADTS communications protocol.

    IEEE488 Interface

    (1975 version)

    Compatible with earlier ADTS units.

    IEEE488 Interface

    (SCPI & 1975)

    Both (E1) and (E2) provided for user choice.

    ADTS 405  Rear Ps/Pt

    Connections

    Duplicate connections provided at the rear in addition to front panel.

    Test Program Manager

    A software package with serial interface mode adaptor. Permits

    laptop PC based control.

    Altimeter Encoder Interface

    For altimeters with ICAO reporting encoders. Permits display of the  bit stream and reporting of altitude value.

    ARINC 429 Interface

    Permits the ADTS to monitor data from an aircraft bus, display the 12  pitot static label information and transmit to the aircraft.

    Accessories

    AC power lead—2 m length (6 ft) approximately. Ps, Pt, pressure and  vacuum hoses—2.5 m lengths (8 ft) approximately. Operators manual  and calibration certificate also supplied as standard.

    Calibration

    Instruments manufactured by GE are calibrated  against precision

    calibration equipment traceable to

    Standards

    international standards
