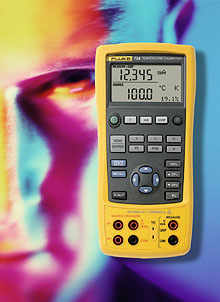

Fluke 724 Process Calibrato

Range

0-1 A AC or DC

Resolution

1 mA

Accuracy

0.2% + 2 LSD (DC)

Range

0-30 mA

Resolution

0.001 mA

Accuracy

0.05% + 2 LSD

Range

0-20 mA or 4-20 mA

Resolution

0.05% of span

Drive Capability

24 V Compliance or 1200 Ω @ 20 mA

to 19.999 kHz, 0.005% + 1 LSD

Beeps for resistance < 100 Ω

Range

0-1000 V AC (true-rms) or DC

Resolution

0.1 mV to 1.0 V

Accuracy

0.1% Rdg + 1 LSD (VDC)

to 40 MΩ, 0.2% + 1 LSD

2.0 V shows diode voltage drop

Yes

Yes

-20 ºC to 55 ºC

-40 ºC to 60 ºC

95% up to 30 ºC

75% up to 40 ºC

45% up to 50 ºC

35% up to 55 ºC

0.05 x (specified accuracy) per ºC (for temperatures < 18 ºC or > 28 ºC)

Designed in accordance with IEC 1010-1, ANSI/ISA S82.01-1994 and CAN/CSA C22.2 No. 1010.1-92

IEC 1010-1 CAT III 1000 V

IEC 1010-1 CAT IV 600 V

1000 V rms

50 x 100 x 203 mm (1.25″ H x 3.41″W x 7.35″ L)

600 g (13 oz.)

4 AA Alkaline batteries

3 years

140 hours typical (measurement), 10 hours typical (sourcing 20 mA)

Random, 2 g, 5-500 Hz

1 meter drop test
