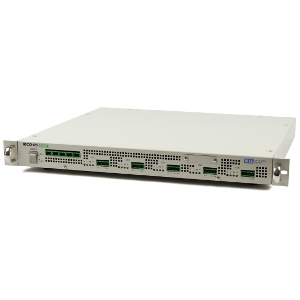

MCD 시리즈

MCD 시리즈는 이차전지, EDLC, 코인셀뿐만 아니라 ECU 및 HILS 배터리 모니터링 모듈등과 같은 것도 테스팅이 가능하도록 되어 있는 장비입니다. 최대 50채널까지 동기화가 가능하며, 모든 채널은 절연되어 있습니다.  하드웨어적으로 시퀀스모드 테스팅시 최대 2us에서 3ms까지 설정이 가능합니다.
MCD-05-05002는 이차전지평가 또는 배터리 출력 시뮬레이션등 다양한 용도에 사용가능하도록 직,병렬 연결이 가능합니다.
MCD-05-05002는 1개의 유니트에 5개의 채널로 구성되어있으며 각 채널은 절연되어있습니다.
마스터 및 슬레이브 구성으로 최대 50채널까지 연결가능합니다.

• Feature

  • 5 channels of charger/discharger in 1U chassis
  • Expandable to max 50 channels (Hardware synchronization)
  • Expandable to max 200 channels (Software synchronization)
  • Various measurement (Terminal voltage, charge/discharge current, capacitance and so on.)
  • Ease of operation by dedicated software

• 어플리케이션



• Order information

  MCD-05-05002	5ch. of 5V, 200mA
  MCD-05-05005	5ch. of 5V, 500mA
  MCD-05-05010	5ch. of 5V, 1A
  MCD-05-05002/REC	Test Data for MCD-05-05002
  MCD-05-05005/REC	Test Data for MCD-05-05005
  MCD-05-05010/REC	Test Data for MCD-05-05010

• SPEC
• DOWNLOAD

• 			MCD-05-05002	MCD-05-05005	MCD-05-05010
  Common	No. of CH		5CH/1set, max 50CH/10 sets (Hardware connection), max200CH/40 sets(Software connection)
  	Common function	Charge section	Charge (DC-Voltage, Current output)
  		Discharge section	Discharge (DC voltage, Current load function)
  		Measurement section	Measurement (DC-V,A and Time)
  	Setting	Interface	Control by the host PC through USB I/F (No control on the panel.)
  		Mode	Single CH Setting / Batch CH Setting (Setting time error: max 10ms)
  	Operational mode	Real time operation	Controlled by real time command from the host PC.
  		Sequence operation	Set the sequence from the host PC prior to the test.
  Charging section	Function		Charge (DC-Voltage, Current output)
  	Operation mode		CC mode, CV mode (Automatic crossover)
  	Protection	OCP/OVP	Controlled by the firmware using the Setting value and measurement result.
  	Output voltage	Setting range	5V to 0V(Single range)
  		Setting accuracy	­±0.06% of f.s. *1	­±0.1% of f.s. *1	­±0.1% of f.s. *1
  		Setting resolution	1mA
  	Output current	Setting range	200mA to 0mA (Single range)	500mA to 0mA (Single range)	1000mA to 0mA (Single range)
  		Setting accuracy	±0.075% of f.s.	±0.1% of f.s.	±0.2% of f.s.
  		Setting resolution	0.1mA	0.1mA	0.2mA
  Dis- charging section	Function		Discharge (DC-Voltage & current load)
  	Operation mode		CC mode, CV mode (Automatic crossover)
  	Protection	OCP/OVP	Controlled by the firmware using the Setting values and measurement result
  	Output voltage	Setting range	5V to 0V(Single range)
  		Setting accuracy	±0.06% of f.s. *1	±0.1% of f.s. *1	±0.1% of f.s. *1
  		Setting resolution	1mV
  	Output current	Setting range	0mA to -200mA (Single range)	0mA to -500mA (Single range)	0mA to -1000mA (Single range)
  		Setting accuracy	±0.075% of f.s.	±0.1% of f.s.	±0.1% of f.s.
  		Setting resolution	0.1mA	0.1mA	0.2mA
  Meas- urement section	OUT voltage	Measuring range	6V to 0V (Single range)	6V to 0V (Single range)	6V to 0V (Single range)
  		Measuring accuracy	±0.02% of f.s. *2, *3, *5	±0.05% of f.s. *2, *3	±0.05% of f.s. *2, *3
  		Measuring resolution	0.1mV	0.1mV	0.2mV
  	Charge & discharge current	Measuring range	220mA to -220mA	550mA to -550mA	1100mA to -1100mA
  		Measuring accuracy	±0.05% of f.s. *2, *4	±0.1% of f.s. *2, *4	±0.1% of f.s. *2, *4
  		Measuring resolution	0.1mV	0.1mV	0.1mV
  	Time	Measuring range	Hardware range 4ms to 60000ms / No upper limit when used with software
  		Measuring accuracy	±0.3% of rdg.
  		Measuring resolution	1ms (Hardware sequence)
  		Minimal measurement	3ms (Hardware sequence)
  Interface	USB		USB1.1
  	I/O		8CH Photo-coupler, Isolated open collector output (12V/10mA, max24V/10mA)
  	Master-Slave expansion		Dedicated connector
  General	Rated input voltage		AC100 to 240V ±10% 50/60Hz
  	Power consumption		40VA or less	60VA or less	80VA or less
  	Dimensions (W x H x D mm)		430×44×400 EIA/1U	430×44×400 EIA/1U	430×44×400 EIA/1U
  	Weight		Approx. 4kg	Approx. 5kg	Approx. 6kg
  	Ambient temperature & humidity		Ambient temperature & humidity
  	Accuracy guaranteed temp and humid.		Accuracy guaranteed for 6 month at the ambient of 23C±5C/ 70%RH
