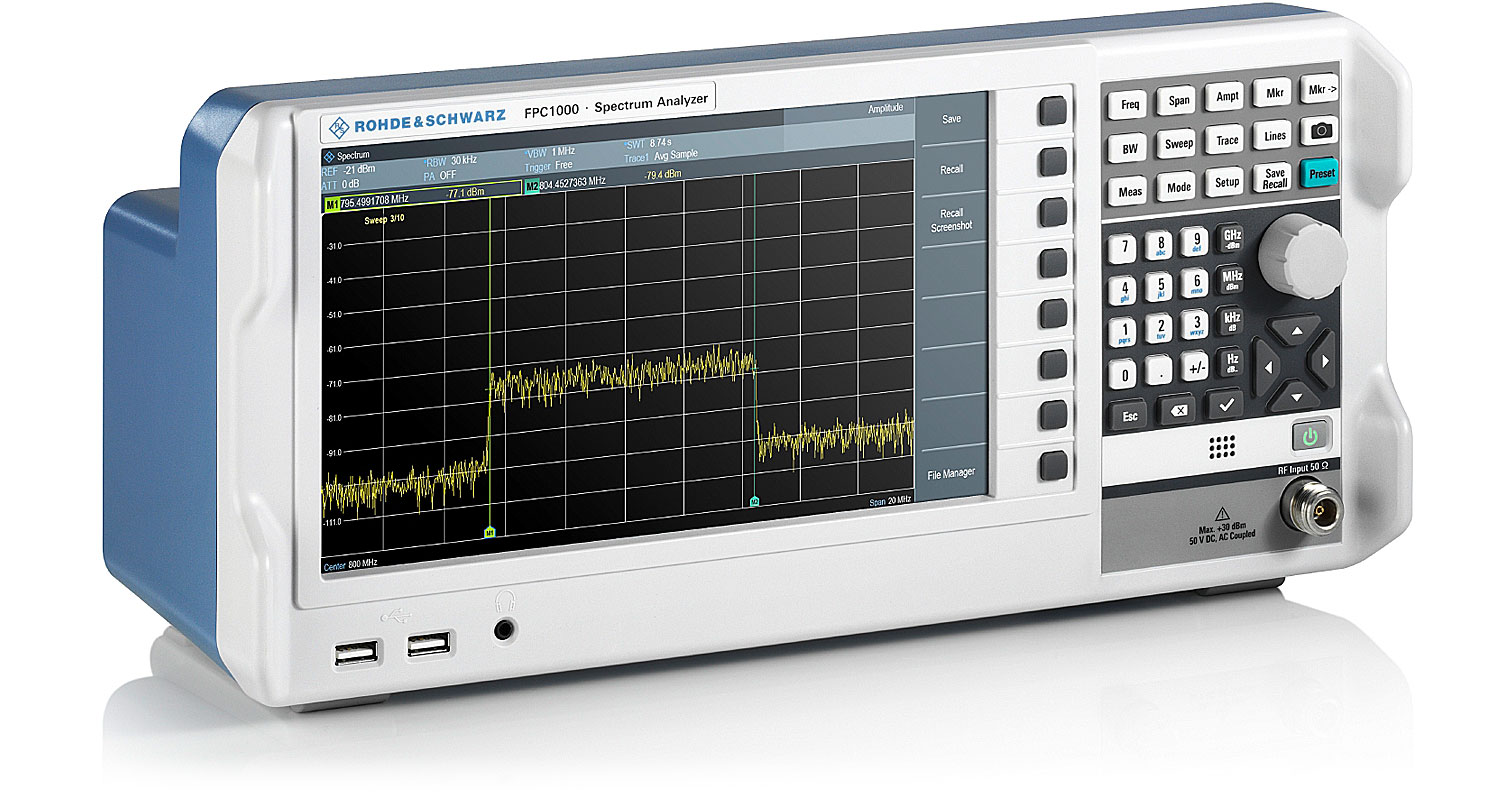

SPECTRUM ANALYZER FPC1000

FEATURE

Specifications in brief
Frequency range	R&S®FPC1000 with FPC-B2 option with FPC-B3 option	5kHz to 1GHz 5kHz to 2GHz 5kHz to 3GHz
Frequency resolution		1Hz
Displayed average noise level	0 dB RF attenuation, 50 Ω termination, RBW = 100 Hz, VBW = 10 Hz, sample detector, log scaling, normalized to 1 Hz	± 1.5% of full scale
	frequency	R&S®FPC1000 preamplifier = off
	1 MHz to 10 MHz	<-127 dBm, –135 dBm (typ.)
	10 MHz to 1 GHz	<-142 dBm, –150 dBm (typ.)
	1 GHz to 3 GHz	<-138 dBm, –147 dBm (typ.)
	frequency	R&S®FPC1000 preamplifier = on
	1 MHz to 10 MHz	<-147 dBm, –157 dBm (typ.)
	10 MHz to 3 GHz	<-158 dBm, –165 dBm (typ.)
	2 GHz to 3 GHz	<-155 dBm, –163 dBm (typ.)
Third-order intercept (IP3)	intermodulation-free dynamic range, signal level of 2 × –20 dBm, RF attenuation = 0 dB, RF preamplifier = off	+7 dBm (meas.)
Level measurement uncertainty
Absolute frequency uncertainty at 100 MHz	+20°C to +30°C	<0.3 dB
Frequency response (+20°C to +30°C)	100 kHz ≤ f	<1.5 dB (nom.)
	10 MHz ≤ f ≤ 3 GHz	<1 dB
